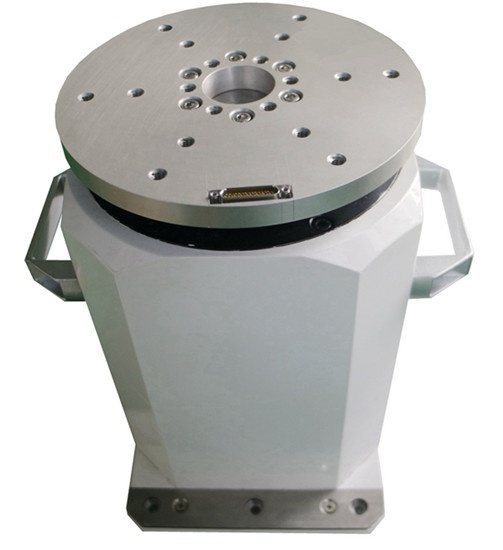

Single-Axis Rate Turntable

Function

This device provides the benchmark of position and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

Axis Orientation

Vertical or Horizontal

Payload Weight

5-40kg

Dimension of Table Surface

200-500mm

Magnetic Leakage

≤2 Gauss（20mm from the table surface）

Material of The Table

Super-hard Aluminum, Stainless Steel

Table flatness

0.015mm

Table Wobble

0.02mm

Motion Error of Main Axis

±2″

Angular freedom

Continuous

Position Accuracy

±2″~±180″

Position Resolution

0.5″

Rate Range

±0.005°/s~±9000°/s

Rate Resolution

0.001°/s

Peak Acceleration

5000°/s²

Conductive Slipring

40 rings/3A

Remote Control Interface

RS232/RS422

Others

The remote control interface can be adjusted by user’s requirements；
The quantity of conductive slip ring can be adjusted by user's requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
