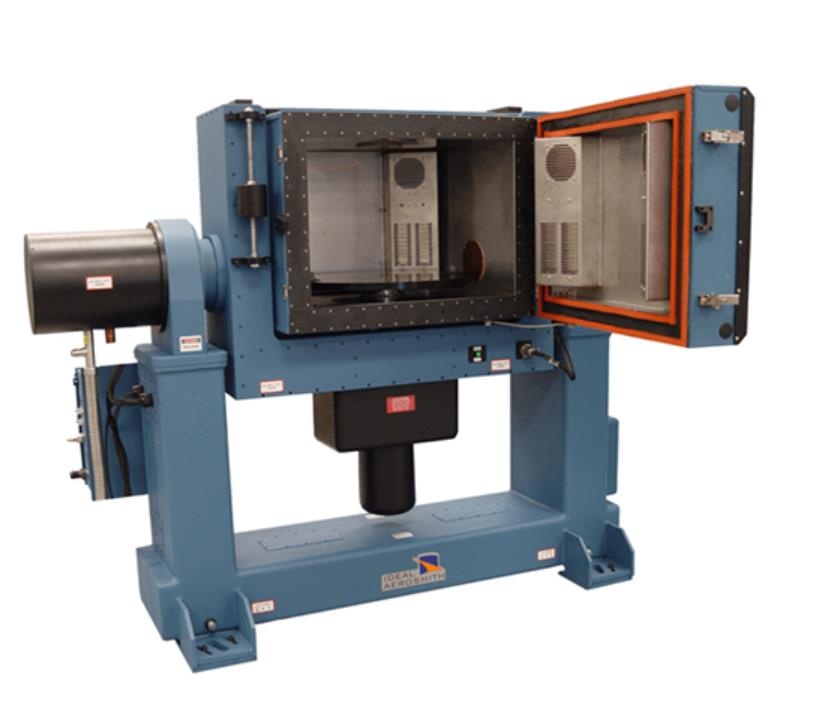

Two-Axis Turntable with Temperature Chamber
- Product No.:No example
Two-Axis Turntable with Temperature Chamber |
||
Inner Axis(azimuthal)
|
Outer Axis(pitch) |
|
Function |
This device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems. |
|
Axis Orientation |
Horizontal(UT) |
|
Payload Weight |
5-40kg |
|
Dimension of Table Surface |
200-500(mm) |
|
Material of The Table |
Stainless Steel |
|
Table flatness |
0.015mm |
|
Table Wobble |
0.02mm |
|
Perpendicularity of Two-Axis |
±3″ |
|
Motion Error of Main Axis |
±2″ |
±3″ |
Angular freedom |
Continuous |
Continuous |
Position Accuracy |
±2″ |
±3″ |
Position Resolution |
0.5″ |
0.5″ |
Rate Range |
± 0.005°/s~±600°/s |
± 0.005°/s~±400°/s |
Rate Resolution |
0.001°/s |
0.001°/s |
Peak Acceleration |
300°/s2 |
200°/s2 |
Conductive Slipring |
40 rings/3A |
|
Remote Control Interface |
RS232/RS422 |
|
Inside Dimension |
600mm×700mm×800mm(L×W×H) |
|
Temperature Range |
-55℃+90℃ |
|
Temperature Stability |
≤±0.5℃ |
|
Temperature Uniformity |
≤±2.0℃ |
|
Temperature Deviation |
≤±2.0℃ |
|
Rate of the Temperature Change |
≥2.0℃/min |
|
Running Noise |
≤65dB(1m in front of the box) |
|
Other |
The remote control interface can be adjusted by user’s requirements; The quantity of conductive slip ring can be adjusted by user’s requirements; |
