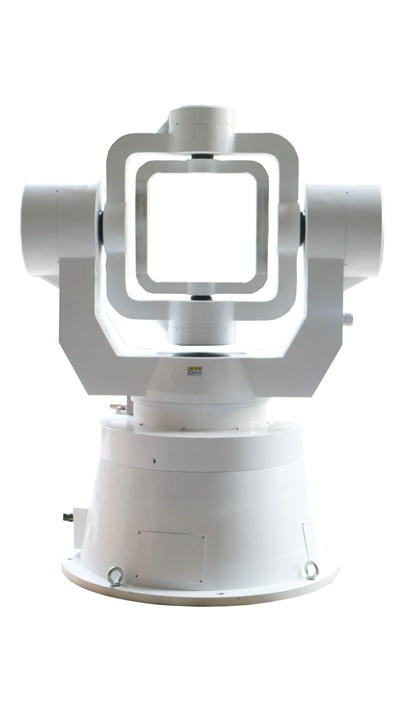

Three-Axis Antenna Turntable

Inner Axis

（up）

Centre Axis

（pitch）

Outer Axis

（down）

Function

This device has the function of simulation, position and rate; It can simulate the three-dimensional motion of the vehicle, it is used in the semi-physical simulation system of the ground, it provide a almost real sports environment for the load such as the radar antenna and also can provide the benchmark of precise single, two axis and three axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

Axis Orientation

Vertical（UOT）

Maximum Load

2000-40000kg

Dimension of Table Surface

600-1500mm

bending moment

1300Nm

10000Nm

3000Nm

Driving Moment

1300Nm

10000Nm

3000Nm

Angular freedom

Continuous

±95°

Continuous

Position Accuracy

±0.03°

±0.03°

±0.03°

Rate Range

±0~±6°/s

±0~±3°/s

±0~±3°/s

Angular Acceleration

0~3°/s²

0~3°/s²

0~3°/s²

Conductive Slipring

80 rings/3A

Remote Control Interface

RS232/RS422

Other

The remote control interface can be adjusted by user’s requirements；
The quantity of conductive slip ring can be adjusted by user’s requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
